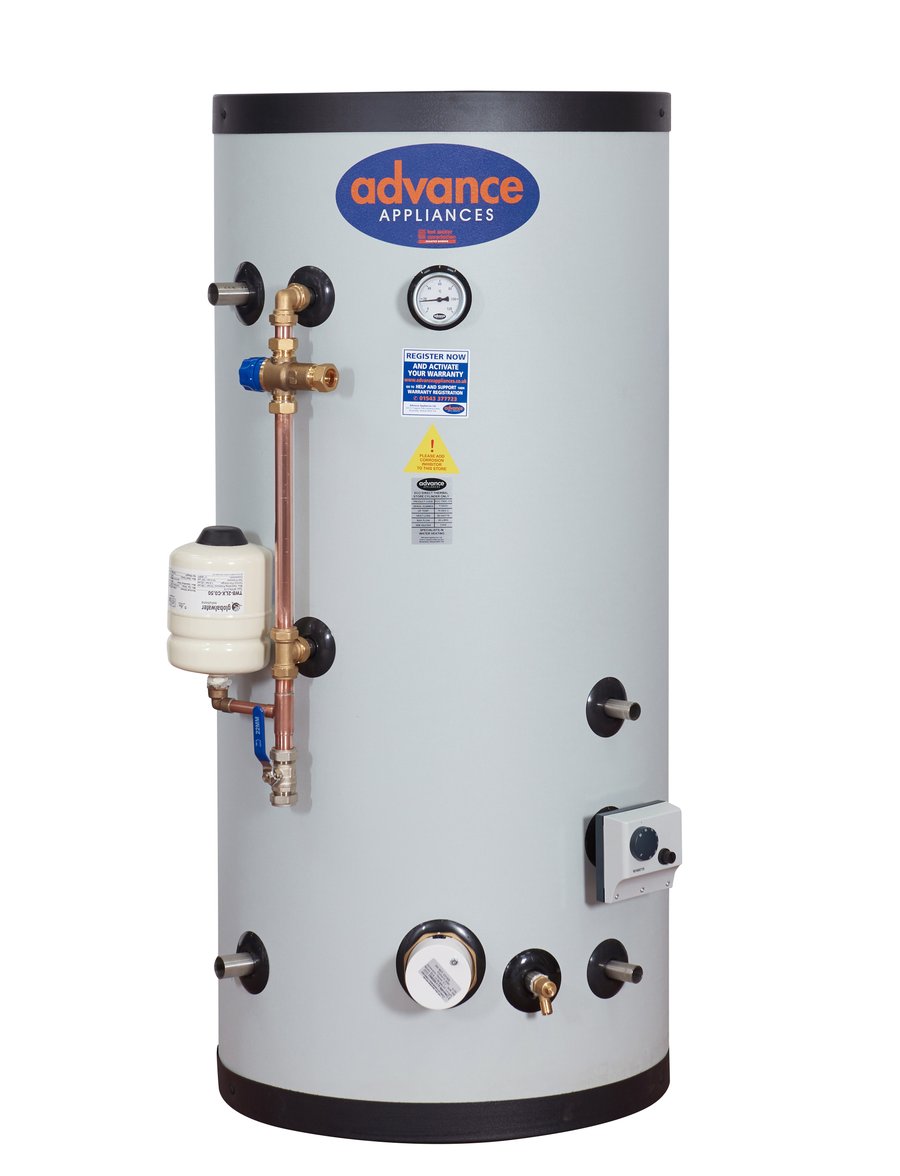

Advance Appliances TSDC Direct Vented Single Coil Thermal Store Cylinders

Use these Advance Thermal Stores for the provision of fast, safe hot water provision throughout the house. They work on the thermal store principle of storing central heating water and providing mains fed hot water via a powerful coil for power showering and quick bath filling. The coil is not pumped. The thermal store acts as a buffer for fast radiator heat up and boiler efficiency.

The direct pattern cylinder (TSDC) without the integrated feed and expansion tank has to be fed with a remote F and E tank sited above the highest point of the radiator circuit. You need two pumps - one for the boiler to keep the store hot - controlled by the thermostat on the store, and one for the heating circuit - controlled by the room thermostat and heating programmer.

These low maintenance pre plumbed units provide flow rates up to 30 litres per minute and if linked to the appropriate gas, oil, solid fuel, biomass or other appliance (except Heat Pumps) are suitable for average to larger properties. The units look smart too, with a wipe-clean appliance finish, and the insulation is 60mm foam injected for maximum efficiencies.

Determining the right type of Cylinder is a key decision. After you determine that Thermal Store Cylinders give the appropriate answer then the Advance Appliances TSDC 170 is absolutely worth adding to the shortlist.
