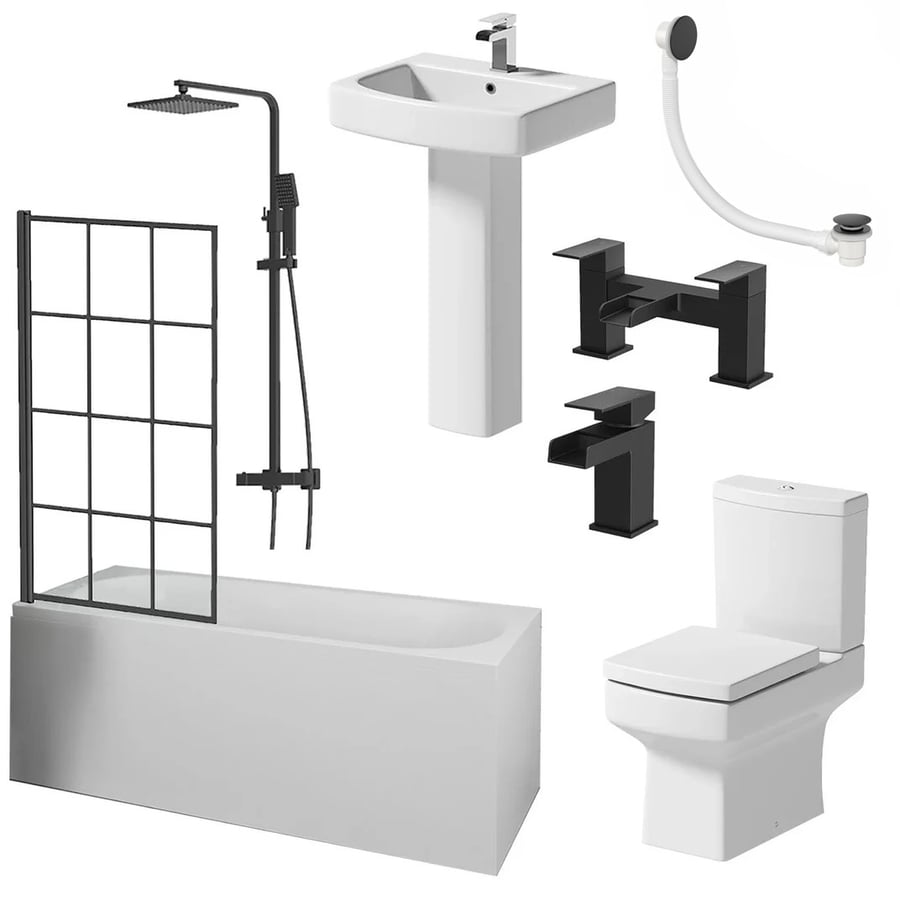

Affine Royan Black Bathroom Suite with 1700mm Single Ended Bath, Toilet, Basin, Taps, Shower & Waste
£695.00 (Inc. VAT)
FREE DELIVERY
Description −
Key information:
- Stylish and versatile bathroom suite
- Single ended bath with a 135 litre capacity
- 6mm thick safety glass black grid bath screen
- Single tap hole basin and full pedestal
- Space-saving toilet & soft close seat
- Dual flush cistern (4/6L)
- Mixer shower with thermostatic control
- 25 year guarantee

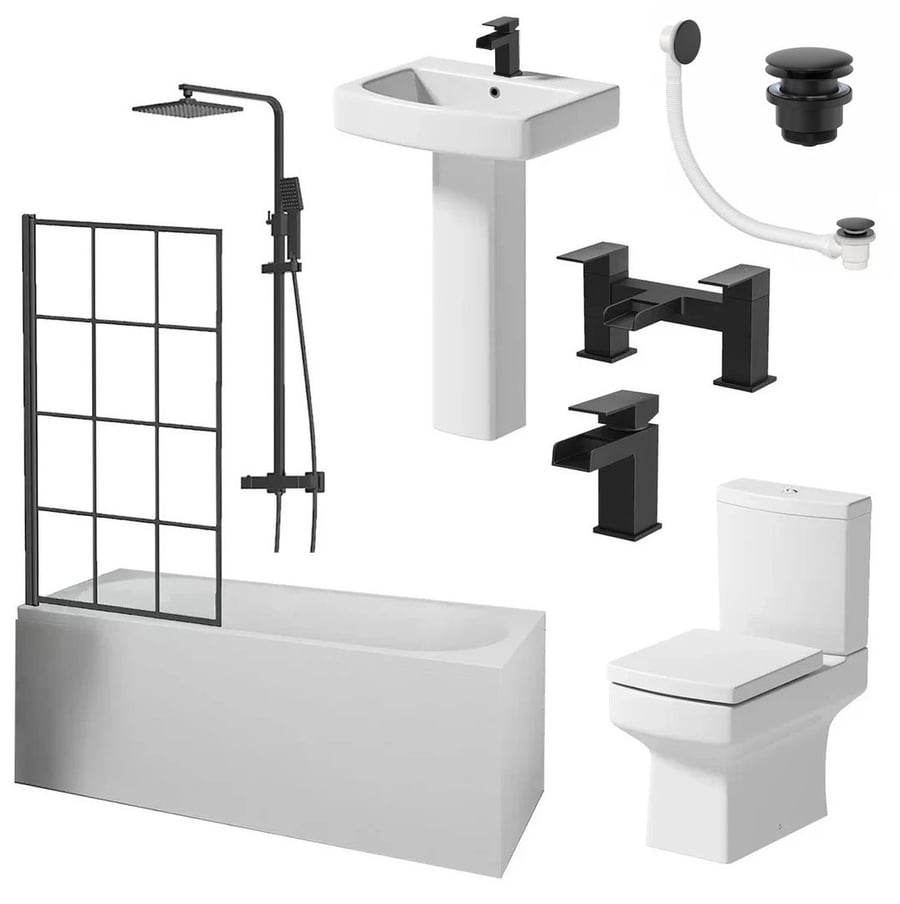

What's included:

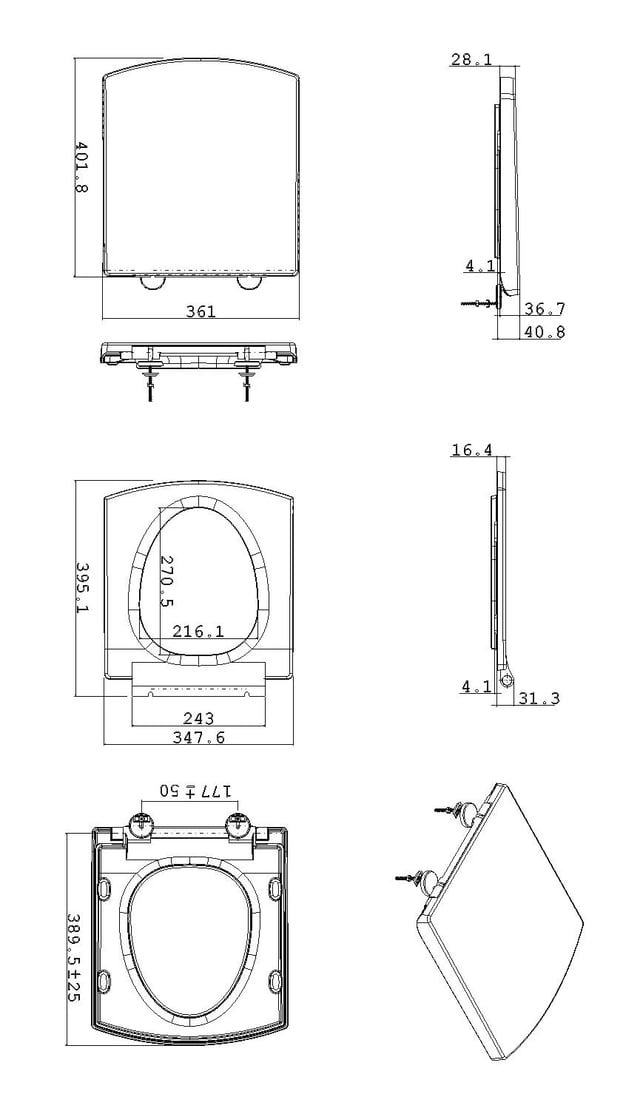

- Affine Royan close coupled toilet & soft close seat

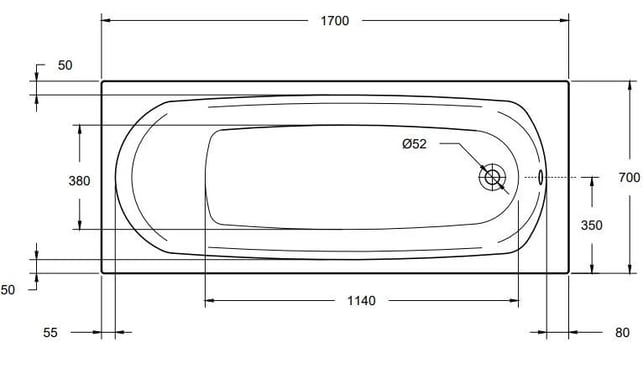

- Ceramica 1700mm single-ended curved bath
- Black grid shower screen
- Affine Royan full pedestal basin

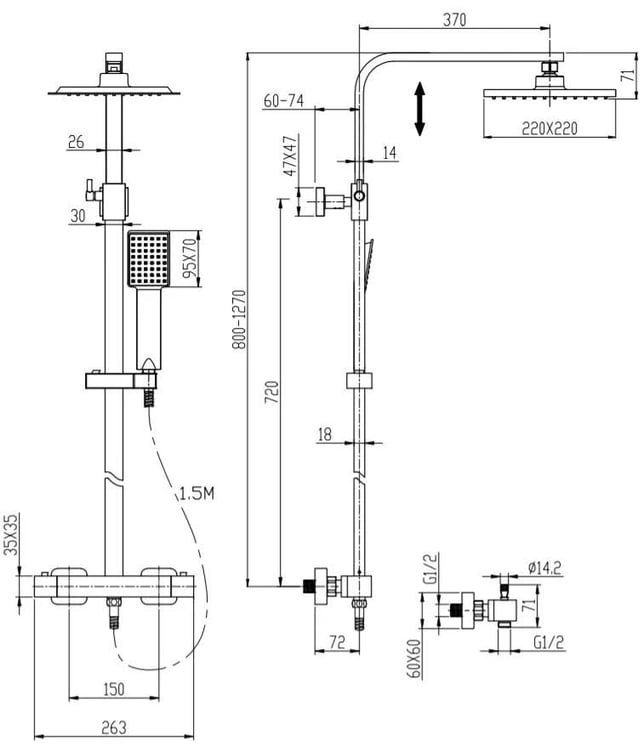

- Merano thermostatic square bar mixer shower with adjustable & fixed head - black

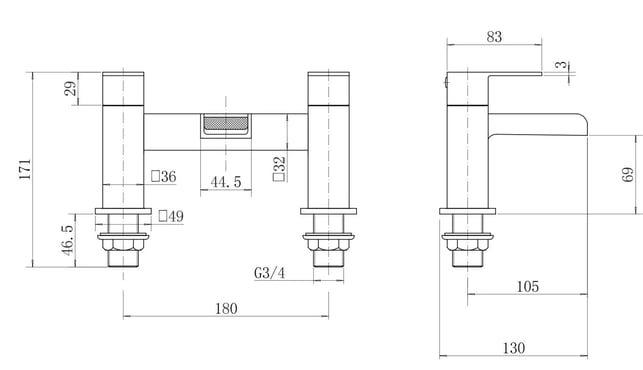

- Architeckt Dakota bath mixer waterfall tap - black
- Architeckt Dakota basin mixer waterfall tap - black
- Architeckt click clack bath waste with removable grid - black

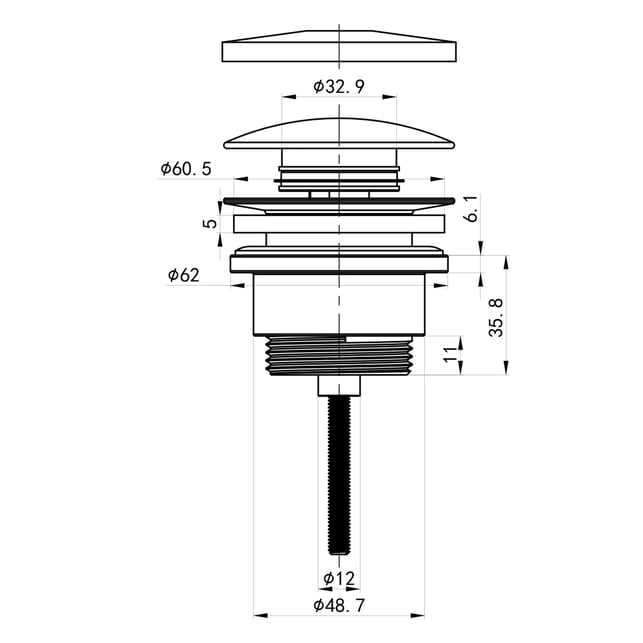

- Architeckt slotted sprung basin waste - black
Transform your bathroom with this Royan Bathroom Suite which combines style and functionality and includes everything needed to completely makeover your bathroom.
Single ended bath
The single ended design bath provides a spacious bathing area. The included bath screen ensures a splash-free experience, adding both functionality and aesthetic appeal. A twin lever bath mixer tap is included for you.
Basin and pedestal
The basin has a single pre-drilled tap hole ready for installation of the included basin mixer tap. A full pedestal is included to provide support to the basin and hide unsightly pipework. A slotted sprung basin waste is also included for you.
Space saving toilet
The close coupled toilet has a short projection pan so won't take up valuable floor space. Soft close hinges on the seat prevent it being slammed shut. The dual flush cistern lets you select a 4 or 6 litre flush to help save water. Toilet fixings are included for you.
Thermostatic mixer shower
The mixer shower has a fixed rainfall head and a separate adjustable handset. Thermostatic control ensures you will have a consistent water temperature for added comfort and safety.
Downloadable Documents +
- general-bathroom-tap-installation-guide (1.53MB)
- single-bath-screen-with-square-edge-grid-installation-guide (2.05MB)
- standard-rectangular-bath-installation-guide (240KB)
- plumbworld-a-comprehensive-guide-to-buying-the-right-bath (7.21MB)
- pan-to-floor-fixing-kit-installation-guide-11 (438KB)
- pan-to-floor-fixing-kit-installation-guide-21 (495KB)
- top-fix-d-shaped-toilet-seat-installation-guide1 (8.18MB)
- dual-flush-valve-installation-guide-1 (1.48MB)
- dual-outlet-exposed-thermostatic-shower-square-and-round-installation-guide-2 (5.41MB)
- cistern-dual-flush-valve-user-guide (611KB)

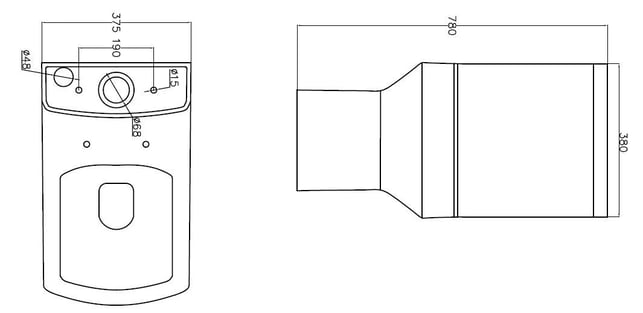

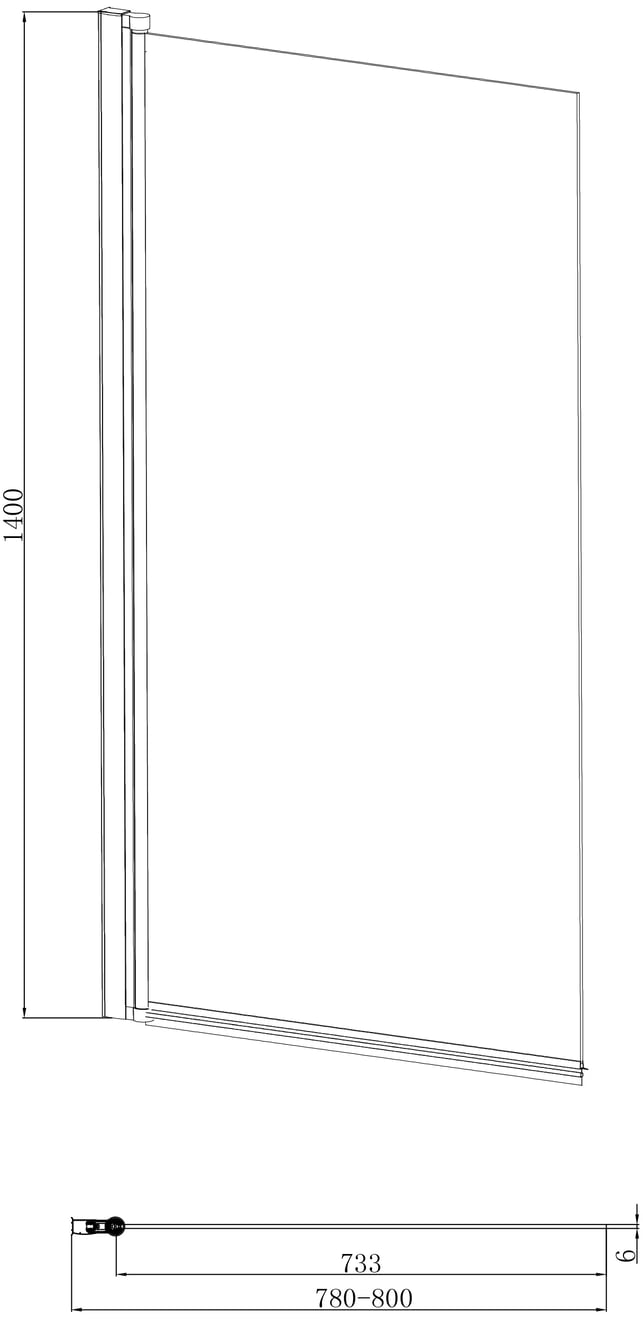

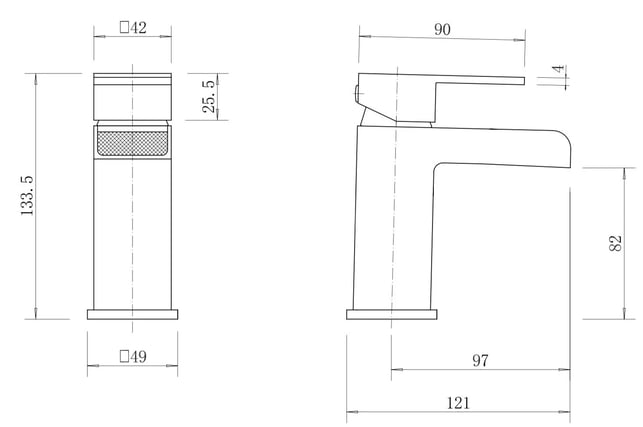

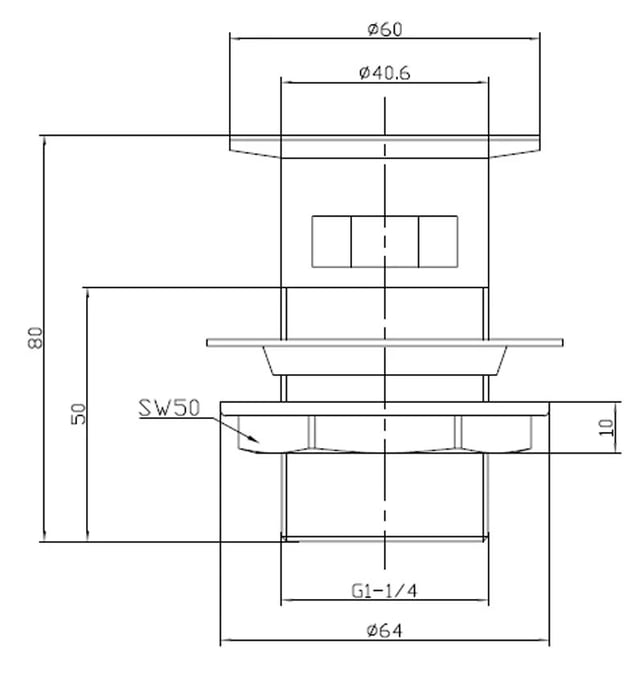

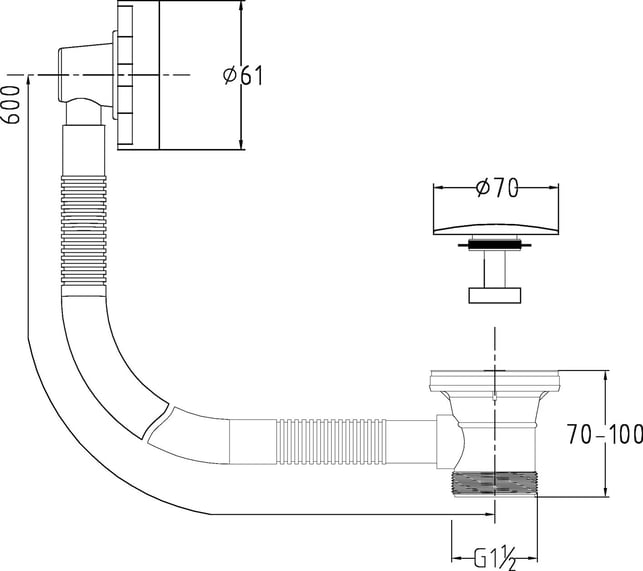

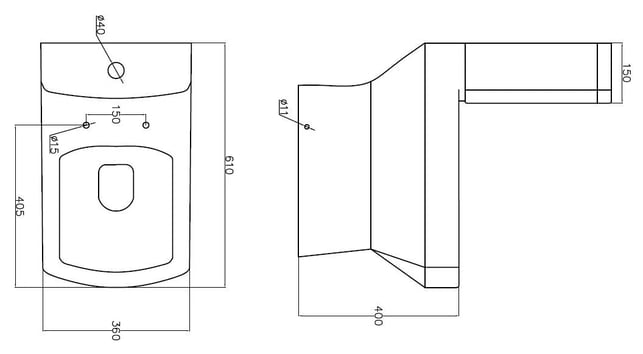

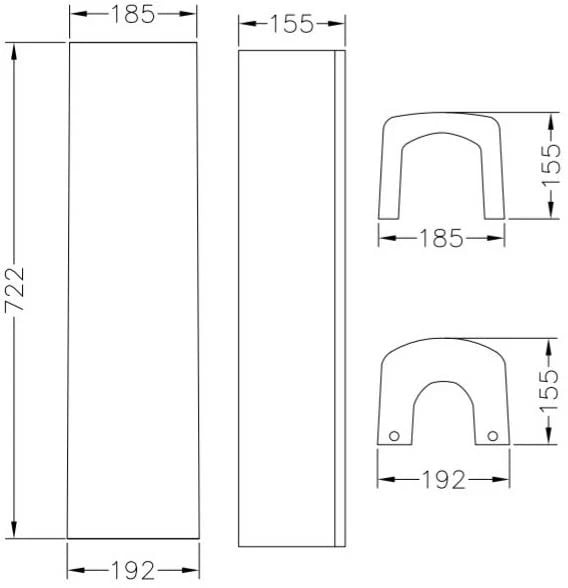

Technical Drawings +
Specifications +
Suite Type | Shower Bath Suites |
---|---|
Style | Modern |
Bath Type | Single Ended Bath |
Bath Length | 1700 mm |
Bath Width | 700 mm |
Enclosure Type | Shower Screen |
Toilet Type | Close Coupled |
Toilet Projection | 405 mm |
Toilet Height | 400 mm |
Toilet Width | 360 mm |
Toilet Inlet Position | Bottom Left |
Toilet Trap Type | P-Trap |
Soft Close Seat | Yes |
Basin Type | Full Pedestal |
Basin Height | 868 mm |
Basin Projection | 440 mm |
Basin Width | 560 mm |
Basin Tap Holes | 1 |
Bath Panel Included | No |
Bath Screen Included | Yes |
Bath Capacity | 135 Litres |
Collection | Royan |
