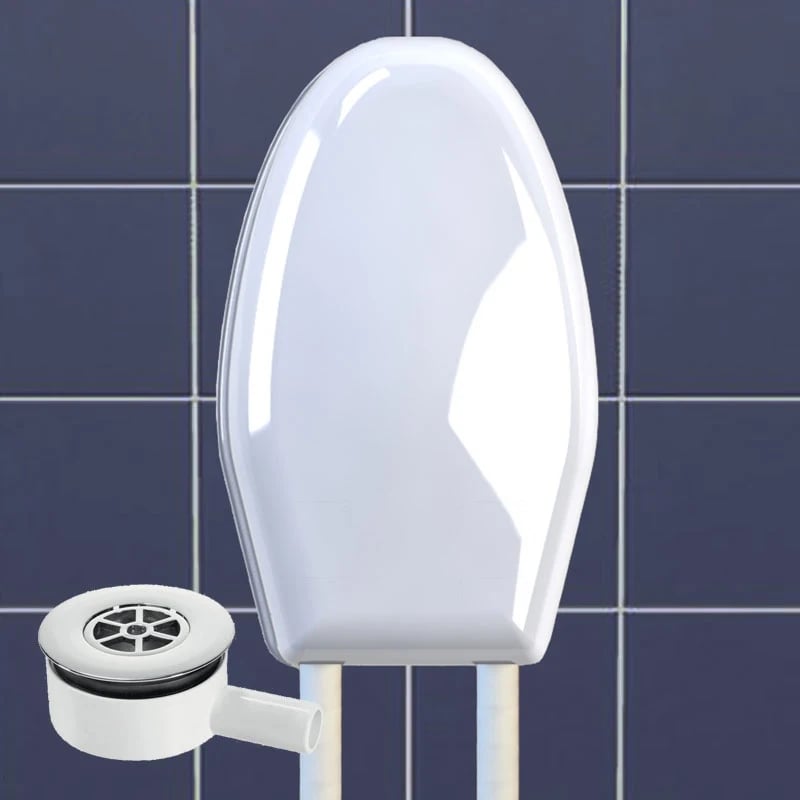

P12 Shower Waste Pump is the quiet, unblockable, maintenance FREE, and variable speed shower waste pump for when gravity drainage is unavailable.
Features:
- Peristaltic pump design.
- Safe 24v DC low energy motor.
- Wall plate with quick release pump bracket.
- Complete with universal fittings and 22mm push fit connectors.
- Self priming up to 500mm.
- Pumps up to 12 litres per minute.
- Variable speed transformer.
- Not handed.
Benefits:
- Pumped water travels through a sealed tube reducing the risk of blockage.
- Near silent operation.
- Maintenance Free design comes with a 5 year warranty.
- Low running costs due to the 24v DC efficient low energy motor.
- Wall plate with quick release pump bracket minimises installation time.
- Can be retrofitted and is compatible with all manufacturers wastes.
- Not handed for easy and quick installation.
- Match speed of pump to flow of water.
- Suitable for electric and mixer showers. *(Additional flow switch required for mixer shower installations).
To achieve optimum pump performance of 12 litres per minute the pump be installed no higher than 350mm from the top of the shower waste outlet to the underside of the wall plate.
The pump can be installed up to a maximum height of 500mm to the underside of the wall plate, but this will reduce the pumps overall performance.
Please note: an additional flow switch (Contour Flow Switch - 05PP11) is required for mixer shower installations. Only one flow switch is supplied with this unit as standard which is designed for electric shower installations only.
Please select the flow switch once this product has been added to your basket. Alternatively, you can purchase the Contour Flow Switch - 05PP11 here.
