Features:

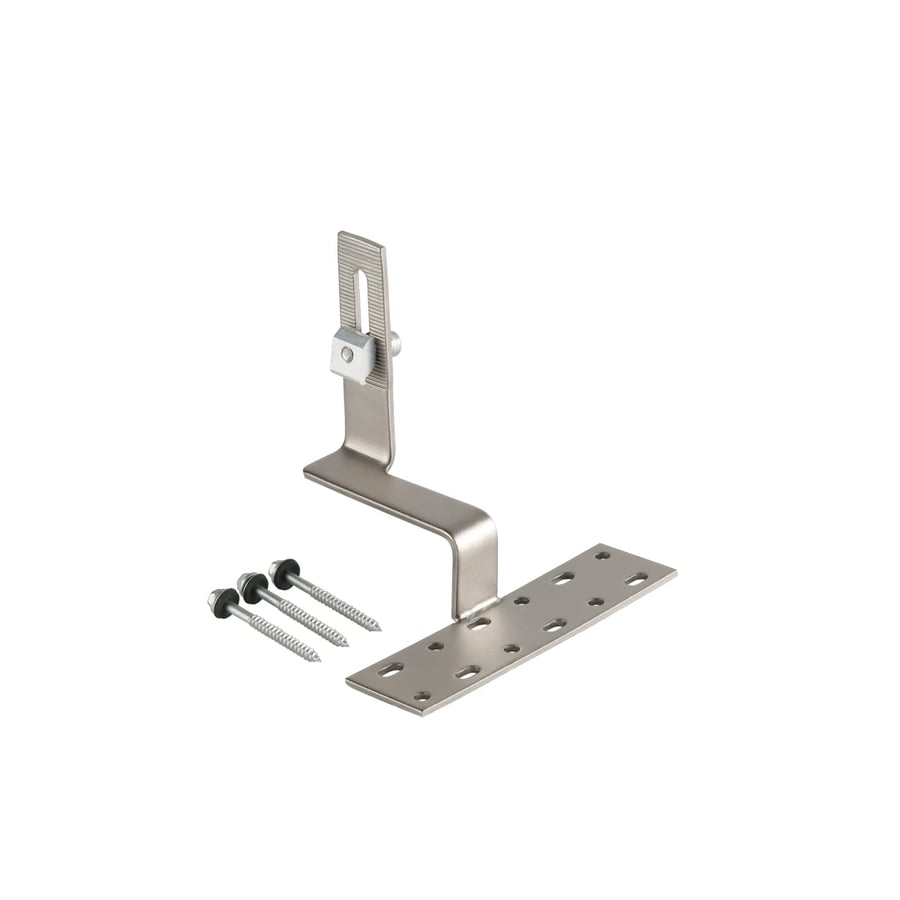

- Designed to secure mounting rails to the roof beams
- Stainless steel brackets
- Compatible with pan tile and concrete tiled roofs only
- Easy & quick installation
Fastensol produces every product using high-quality materials, advanced equipment, and combined with strict inspection, the mounting brackets in Fastensol offer over 25 years durability and practicability with 12 years guaranteed.
Installation
Remove a few tiles from the outside of the roof and the hook can be secured to a rafter pointing 'downhill' with the tek screws provided. Plywood padding can be used to ensure the correct spacing from the tile surface. The tiles are simply replaced around the hook ensuring a weatherproof finish.
Guarantee
- 12 years for durability on material, 5 years on finish for peace of mind
Technical information:
- Suitable for pitched and flat roofs
- Cladding type: concrete / pan / roman tiles (other roof mounts also available)
- Maximum slope: 60 degrees
- Wind load: up to 60m/s
- Snow load: 2.0kn/m2
- Maximum building height: 20m
- Material: stainless steel
- Color: silver
- MCS 012 certification
