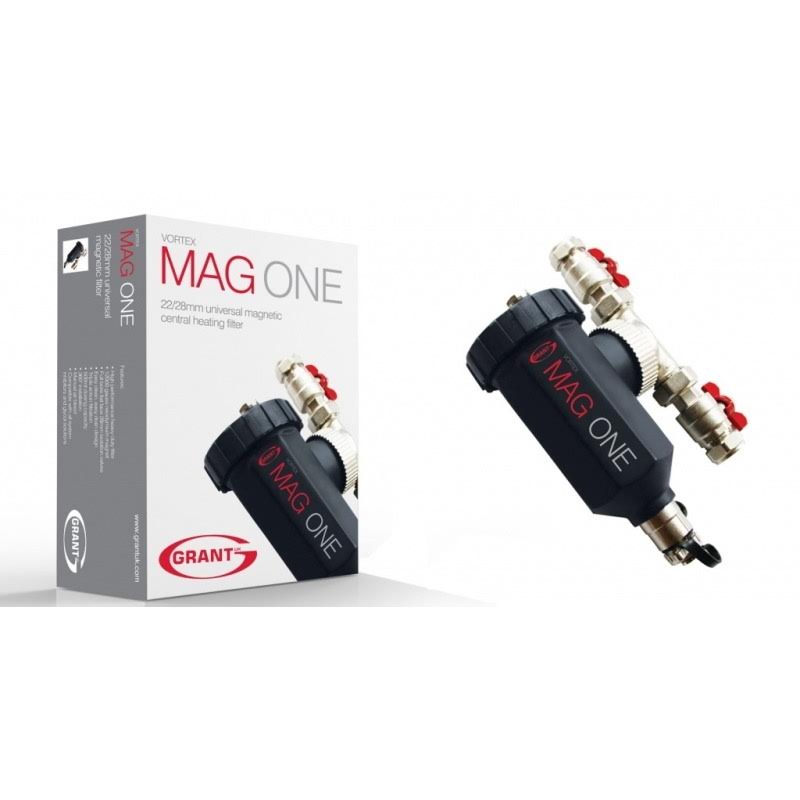

Grant Vortex 22/28mm Mag One Magnetic Filter

Innovative protection for all types of central heating systems. *Only Grant VortexBlue boilers installed by a Grant G-One accredited installer and fitted with a Grant Vortex MagOne filter are eligible for the 10 year warranty. The boiler must also be serviced annually by a competent heating engineer.

The Grant Mag One 28/22mm Central Heating Filter is sure to limit any boiler breakdowns by getting rid of any loose debris from the heating system. The fantastic triple-action filter is able to recognize and filter all types of non-ferrous debris and magnetite within the system. The Grant Mag One 28/22mm Central Heating Filter is able to fit new heating systems or be retrofitted to older heating systems, protecting new systems and increasing the effectiveness and lifespan of existing ones.

Features and Benefits:

• Full bore flat face 28mm chrome isolation valves with 22mm reducers
• 120°C max working temperature
• 500ml dosing capacity
• 360° installation
• 6 bar max working pressure
• Heavy duty filter for non-ferrous material
• Filters magnetite and non ferrous debris
• Simple to install
• Easy clean, easy drain design
• 12000 Gauss Neodymium Magnet
• Triple action filtration
• Installation/servicing date wheel
• Complete with 28mm-22mm reducers
• Full bore flat face 28mm chrome isolation valves
• Manual air bleed
• Supplied with spare sealing washers & o-rings
• Unblockable - even if the filter isn't serviced
• Hose adaptor for remote draining
• Suitable for all heating systems up to 36kW(larger systems use two in a parallel circuit)
• Compatible with all system inhibitors and glycol solutions
