Key Features

• Dimensions: 330(H) x 200(W) x 109(D) mm
• Warranty: 3 years
• Phase unit: Three
• AC charging output: Up to 22kW (32A)
• Connection Type: Type 2 (IEC 62196) charging socket
• Wi-Fi/ethernet connectivity
• Power output adjustments: 10A, 13A, 16A and 32A
• QUBEV Smart app
• Charging modes: Plug & Charge, ECO (solar), and Scheduled
• Fully UK Smart Charge Point Regulations compliant including tamper security
• Built-in LED charging status indicator

Rolec QUBEV Type 2 Smart EV Charger, 22kW Overview

The Rolec QUBEV Type 2 Smart EV Charger, 22kW is a cost-effective and reliable solution to charging your EV at home, development sites, residential spaces and private parking areas.

Providing up to 22kW of power, this renewable EV charger is compatible with all EVs and also offers solar charging capabilities.

Safe and Securing Charging

This untethered charger is compliant with the latest UK Smart Charge Points Regulations, including security logs and alerts, and the unit has an IP65 weatherproof rating and is made with ABS and polycarbonate to withstand harsh weather conditions.

Adjustable Power Rating and Settings

You're in control of the power output, with options of 10A, 13A, 16A and 32A. Best of all, the QUBEV Smart app gives you more control of how to operate this EV charger. For example, choose from three charging modes (Plug Charge, ECO (solar) and Scheduled.

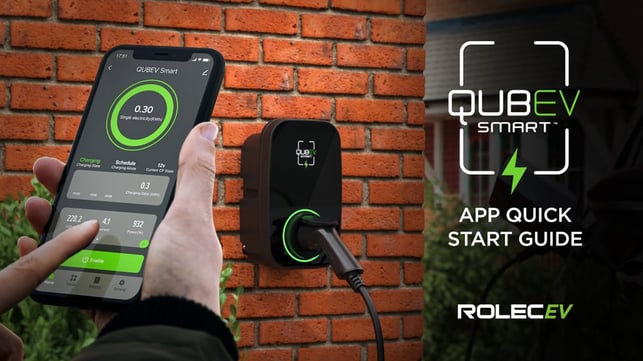

The app also shows your EV's current charging state, a full charging history along with fault notifications, allowing you to detect any malfunctions and errors early.

Additional Features

• Colour: Black
• Unit materials: ABS and polycarbonate
• Mounting back plate material: 1.5mm steel with black powder-coated finish
• Security: Tamper and breach protection boundaries with notifications
• Ingress protection: Enclosure IP65, plug & socket IP54
• Impact protection: IK08
• Mounting options: Wall or post
