Designed specifically where floor drainage is required but where space underneath is very limited e.g. wet rooms. This two part kit with a powerful shower waste pump and a choice of three waste designs can pump up to 3m vertically as well as 30m horizontally. Higher flow rate means it can be used with powerful 'rain head' showers.

Gully types:

Sanifloor 1 with shower waste for tiled floor - height 68mm

Sanifloor 2 with shower waste for vinyl floor - height 68mm

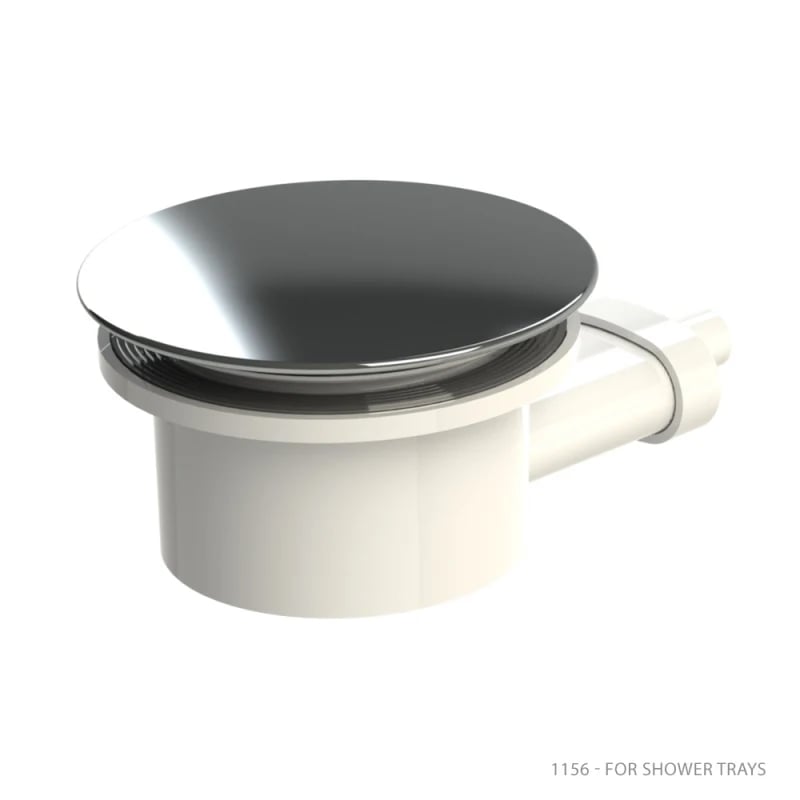

Sanifloor 3 with shower waste for trays - height 63mm

• Suits wet rooms and low level shower trays
• Ideal for high flow applications
• Pump and waste inlet can be up to 3m apart horizontally
• Dual function - sucks waste up from the gully and pumps waste water away up to 3m vertically or 30m horizontally
• Pump can be sited up to 300mm above the gully
• All gully types are 90mm in diameter
• Dimensions (height x width x depth) - 295 x 164 x 191
• Discharge pipe diameter (mm) - 32
• Electrical supply (V/Hz) - 220-240 / 50
• Horizontal discharge (m) - 30
• Max. amperage (A) - 16
• Min. gravity fall on horizontal run - 1
• Wattage - 400

Determining the most suitable type of Pump is a key decision. When you decide that Macerators provide the appropriate solution then the Saniflo 6156 is assuredly worth a serious look.
