Key Information
- Dimensions: 290(W) x 120(L) x 206(H)mm
- Starting voltage of 50V
- 98% maximum efficiency
- Enhanced DC input performance
- Optional data updates
- Advanced safety features
- Integration with home EV chargers
- 5-year guarantee
What’s Included

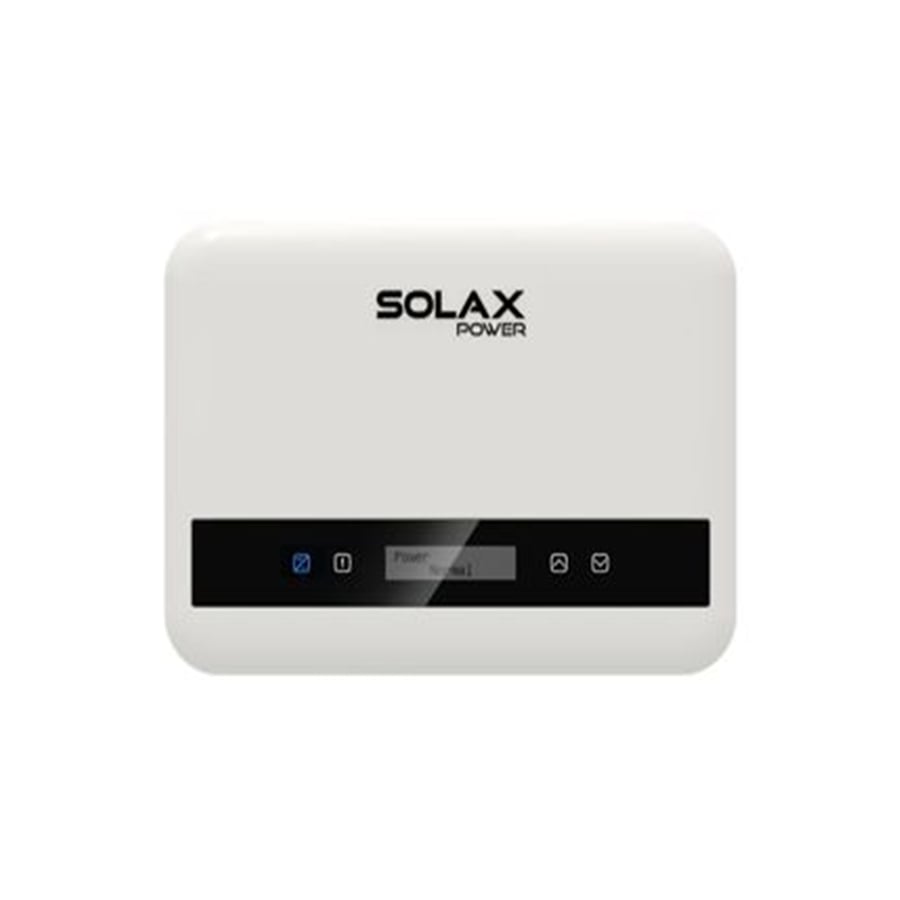

- 1 x Solax X1 Mini G4 1.1Kw Solar Inverter
The Solax X-1-MINI G4 range of inverters has been made specifically for small PV (photovoltaic) arrays, and since they start operating at a voltage of 50V and achieve an impressive maximum efficiency of 98%, they’re proof that small is mighty. The X1-MINI G4 is designed to help you fully exploit the capabilities of your PV system, ensuring exceptional performance and energy harvest tailored to your local solar conditions.
Despite being smaller than an A4 sheet of paper, the Solax X-1-MINI G4 inverter excels in delivering peak energy potential and efficiency, making it perfect for installations where space is limited, such as balconies.
Boosted Performance
The X-1-MINI G4’s performance is notably enhanced with features such as a 200% oversizing of DC input, a current of 16A, and a wide MPPT voltage range from 40V to 450V. Plus, the built-in global Maximum Power Point (MPP) scan ensures higher energy yields from your solar setup.
Monitoring your system is made easy with optional data updates every 10 seconds and multiple interfaces for comprehensive data presentation.
Safety As Standard
Safety is a priority with the X1-MINI-G4, offering optional AC/DC built-in type II surge protection devices (SPD), support for external rapid shutdown devices (RSD), optional arc fault circuit interruption (AFCI), and a built-in expert control function.
The inverter also boasts flexible adaptability, seamlessly integrating with home EV chargers and supporting mass management and extensive extensions via Datahub. And you can expand the system even more through parallel solutions supported by Modbus.
Additional Information
- Max. PV array input power [Wp]- 2200Wp
- Max. PV input voltage [V]- 450V
- Rated AC output power [W]- 1100W
- Rated AC output current [A] - 4.8A
