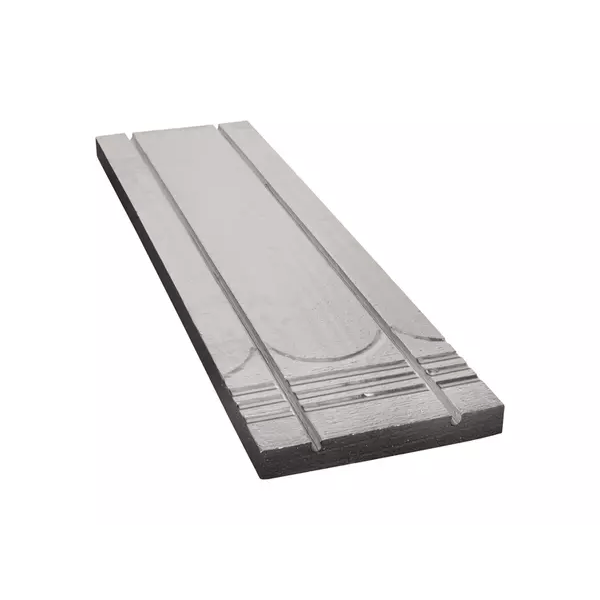

Speedfit 1200x350x50mm Underfit Boards (Pack Of 10)

Insulated floor panel including return bends for timber floor installations. For joist and battened floors.

JG Underfloor underfit board's are a low-profile underfloor heating pipe fixing system made for use with existing timber suspended floors, or floating floor structures. Perfect for use in retrofit projects due to the pipe fixing system providing no height build up. The system can also be used for both ground and first floor applications.

The system allows for easy insertion of 15mm pipe into a grooved foil-faced panel over existing floor, between battens or under the floor between joists. Maximum pipe circuit length is 100m with a recommended flow temperature of 50-60 Degrees C.

Features and benefits

• Existing floor pipe fixing system
• Lightweight insulated panel
• Grooved foil-faced panel with 200mm centres
• Low height build up
• Medium to low heat output and response (approx. 50-60w/m2)
• Ideal for rooms of all sizes and shapes
• Suitable for underfloor heating applications only
