Speedfit UFH Kit to cover 30m² - JGUFHPACK30/4

For conservatories or room extensions up to 30sq metres.

The Speedfit Underfloor Heating System has been designed to be quick and easy to install with components designed and manufactured to ISO9001 and DIN4726. The Speedfit System has hot water pumped from a boiler to a pump pack, where it is mixed to approximately 50°C then distributed via a manifold to heating circuits made using Speedfit Barrier Pipe.

In concrete floors, the pipe is laid on insulation and then covered with a screed on which can be laid almost any type of floor covering. For timber floors, spreader plates are laid between the joists and the floor decking or on the underside of the floor. Speedfit pipe is pushed into the grooves on the plates. The floor area is typically between 25°C and 28°C, providing an even distribution of heat at only slightly higher than room temperature.

A wide range of electrical components means The System can have as much or as little control as required.

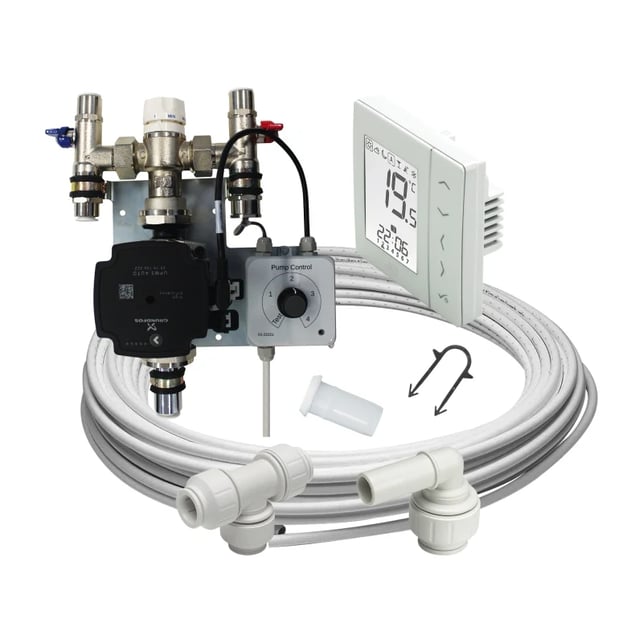

Pack Contents:

• 2 x 15mm x 100m Coil Polybutylene Pipe
• 1 x Programmable Room Thermostat
• 1 x Single Room Control Unit
• 300 x 15mm Pipe Clips
• 8 x 15mm Pipe Insertsa
• 2 x 15mm Speedfit Equal Tees
• 2 x 15mm Speedfit Swivel Elbows

Selecting the correct type of Underfloor Heating is a major decision. Once you decide that Wet Underfloor Heating deliver the appropriate answer then the Speedfit UFH Kit to cover 30m² - JGUFHPACK30/4 is certainly worth putting on your shortlist.
